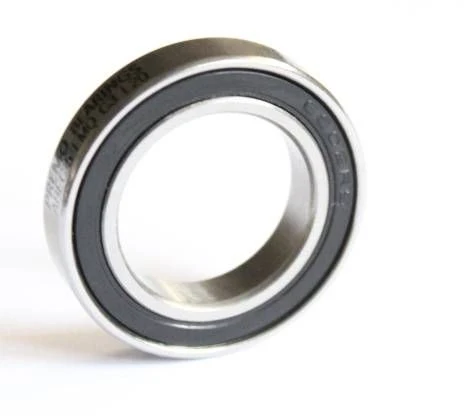

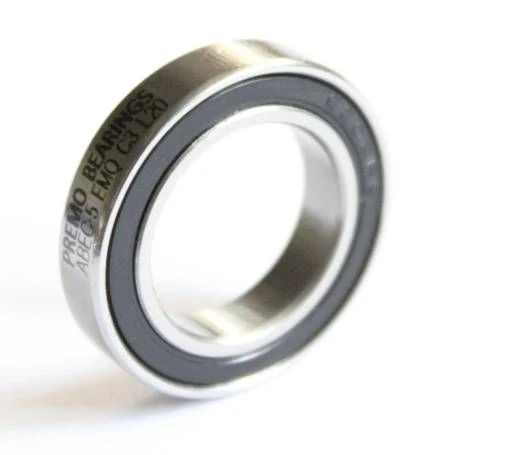

Deep Groove Ball Bearing – 15x24x5 mm (resp. 24x15x5 mm)
| Loadability: | |
| Corrosion resistance: | |
| Impermeability: | |
| Speed range: |
| Specialty | Electric motor quality (V2 / Z2): Smooth running and high precision |
|---|---|
| Dimensions (mm) – Inside x outside x width | 15 x 24 x 5 mm |
| Cover | Rubber seal on both sides (NBR; contact to the inner ring); reinforcement plate under rubber (ST12); 100-120° C max. |
| Rings material | Chrome alloyed steel (100Cr6 / SAE 52100 / 1.3505); Hardened; Hardness: ~60 HRC; 150° C max. |
| Ball material | 100Cr6-G5 |
| Cage material | Steel cage (ST12); 150° C max. |
| Tolerance class | ABEC-5 bearing (DIN/ISO P5); High Precision bearing |
| Clearance | C3 (increased internal clearance): more play between the rollers and the rings; Often used at high temperatures and very high speeds (compensates the steel expansion) |
| Radial play | min.: 0.003 mm / max.: 0.018 mm |
| Inner diameter (mm) | 15 |
| Inner diameter tolerance | +0 / -0.005 mm |
| Outer diameter (mm) | 24 |
| Outer diameter tolerance | +0 / -0.006 mm |
| Width (mm) | 5 |
| Outer ring surface | Cylindrical outer ring (standard) |
| Angle (Inner ring / Outer ring) | 90°/90° (Standard) |
| Conductivity and magnetism | Electrically conductive: Yes – Magnetic: Yes |
